OS-MAX-10FP-M

Digital Restoration

O.S. ENGINES OS-MAX-10FP-M

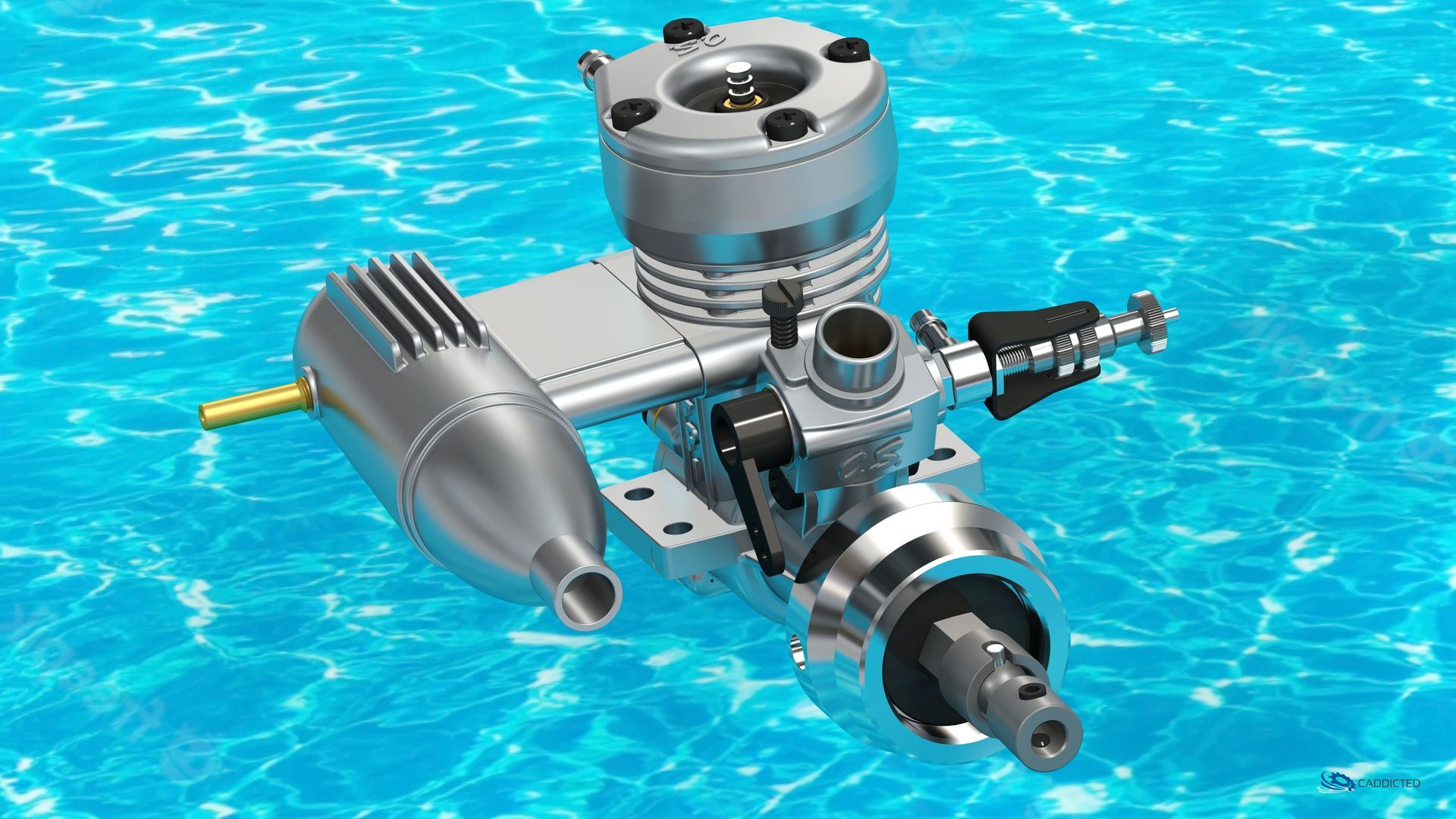

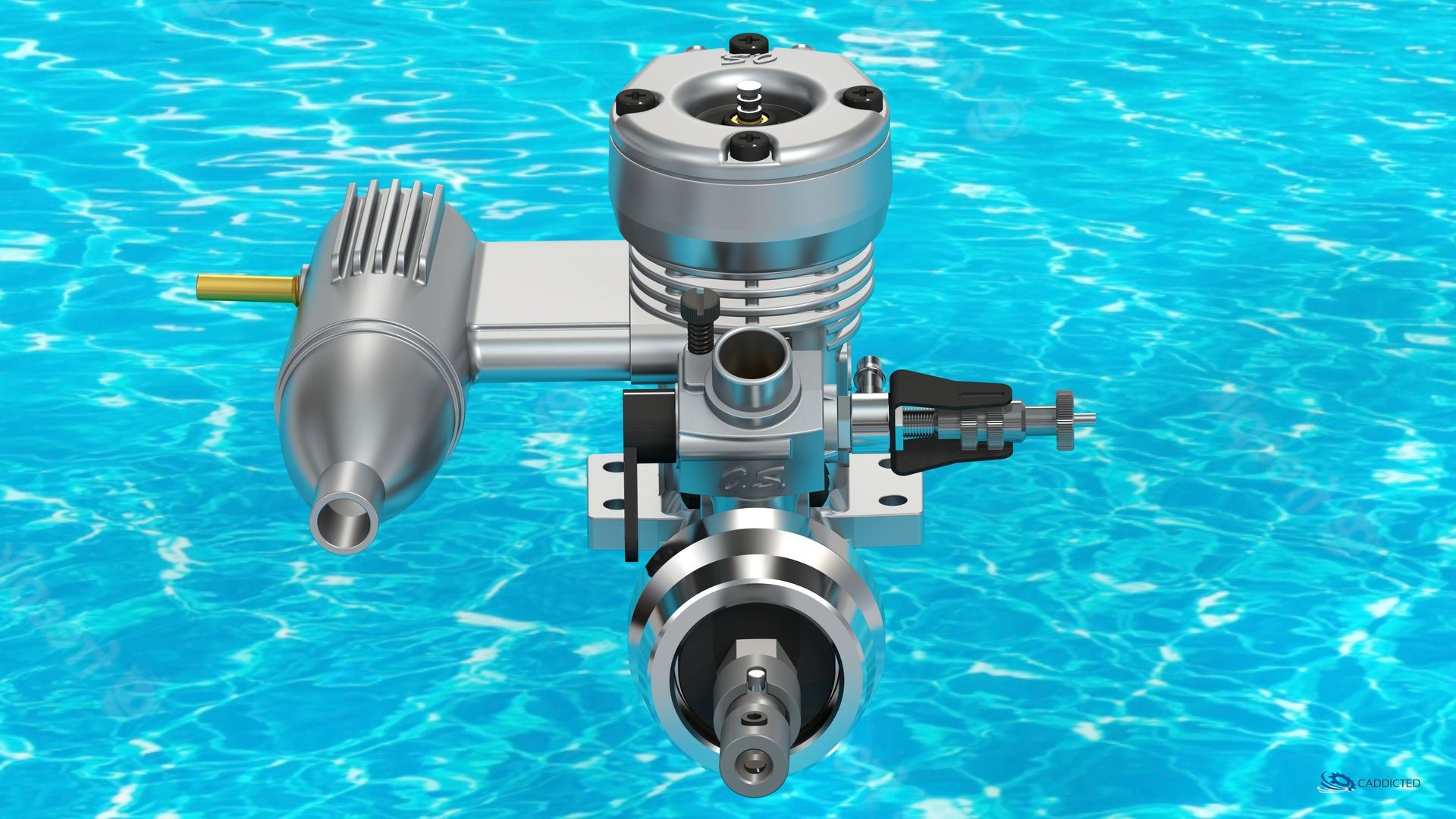

Welcome to a tour through the results of the digital restoration of this 1.76 cc glow plug engine with water-cooled extreme cooling head.



An engine type of the FP 1.76 cc series, which was released as the successor series to the FSR series according to the OS line card. The engine must be started via the flywheel and, unlike the -MX type, does not have a pull starter.

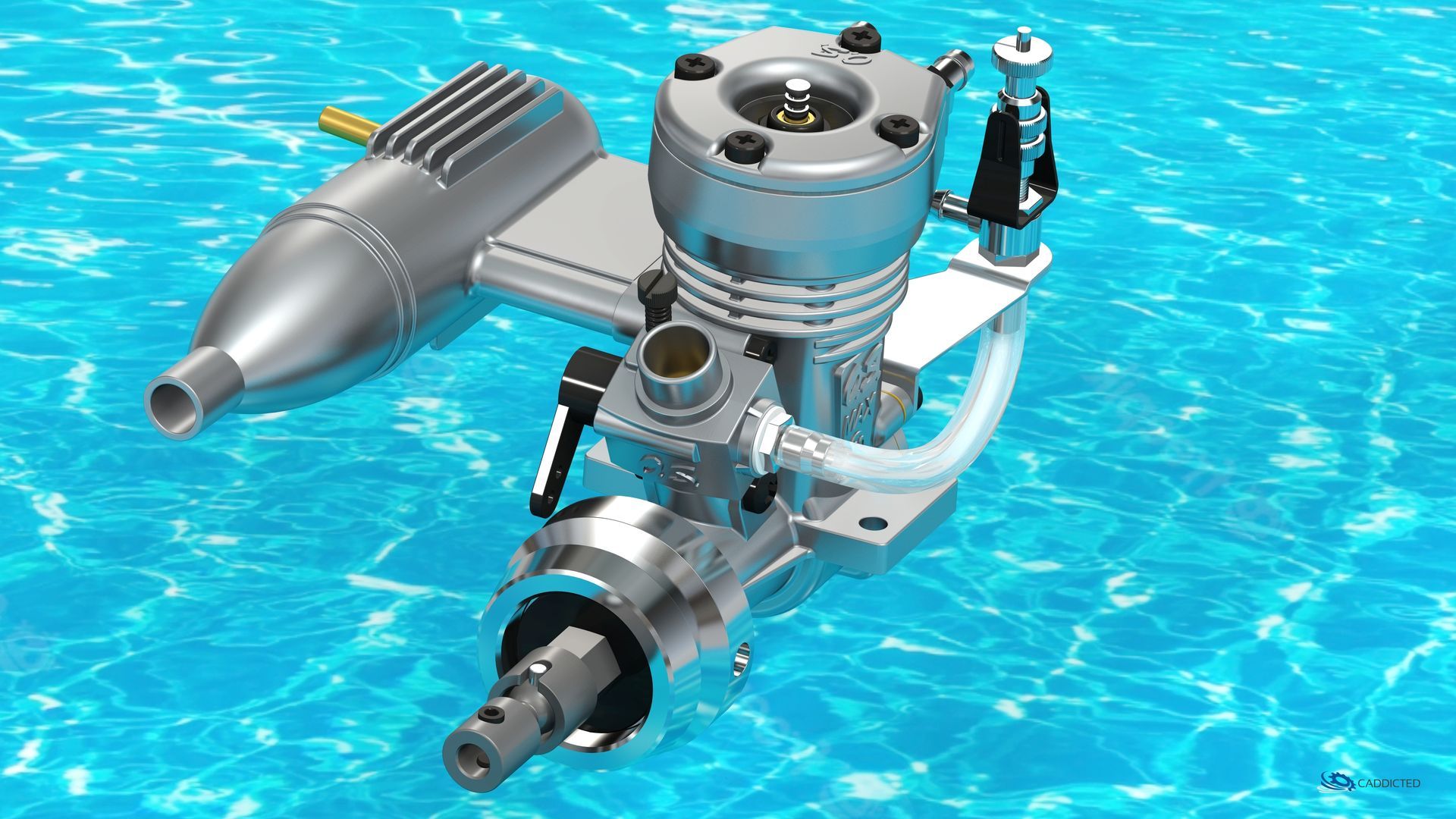

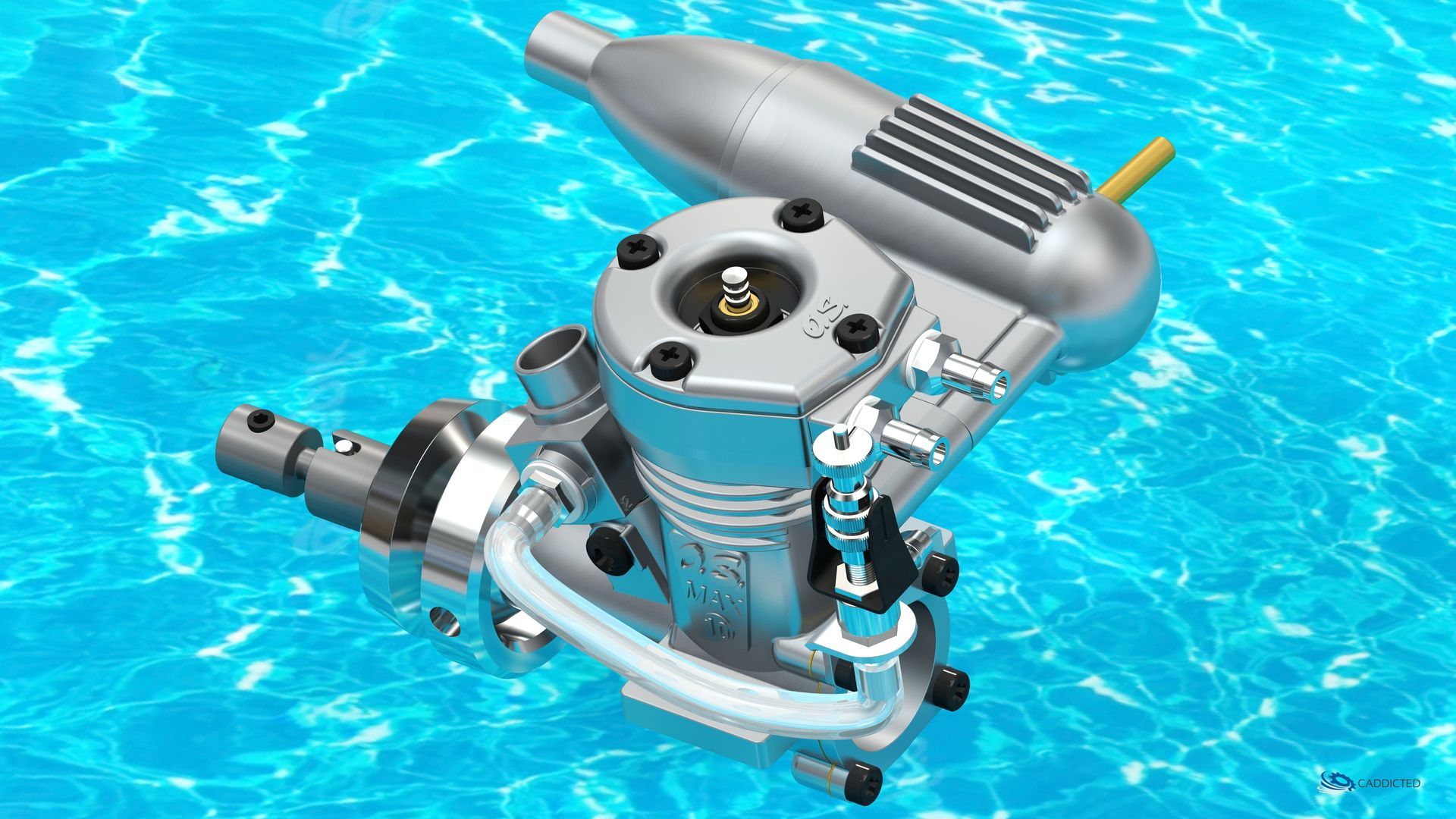

Single-cylinder 2-stroke engine with glow plug ignition, Schnürle flushing, rotary valve crankshaft, side exhaust, crankshaft bearing as pressed-in bronze bushing, throttle carburetor with cylindrical throttle plug. Special extreme heat sink for water cooling made of fine die-cast aluminum.

Other engines

Displacement            1,76 ccm (0,107 cu.in)

Bore                            13,44 mm

Stroke                         12,40 mm

rpm range                  3.000...18.000 1/min

Performance              0,27 PS / 0,198 kW @ 17.000 1/min

Combustion type       2-stroke

Fuel                              Methanol, Oil, Nitromethane

CAD-models            21.05.2022 - 18.09.2022

Rendering                28.06.2022 - 11.07.2022

Blueprint                  01.01.2023 - 20.01.2023

Step-model              _1812_os-max-10fp-m.stp

Engine purchase     April 2022

Production date      1987
