CADDICTED BOB's - Breakout Boards
Breakout boards allow access to all pins of an IC or the use of SMD components on breadboards or experimental boards. Here you can find some of my designs that I have developed and used over time for my own electronics projects. Free Use - Free Download for the exclusive non-commercial private use .
And I am happy about every short news with comments or optimization suggestions after downloading or using.

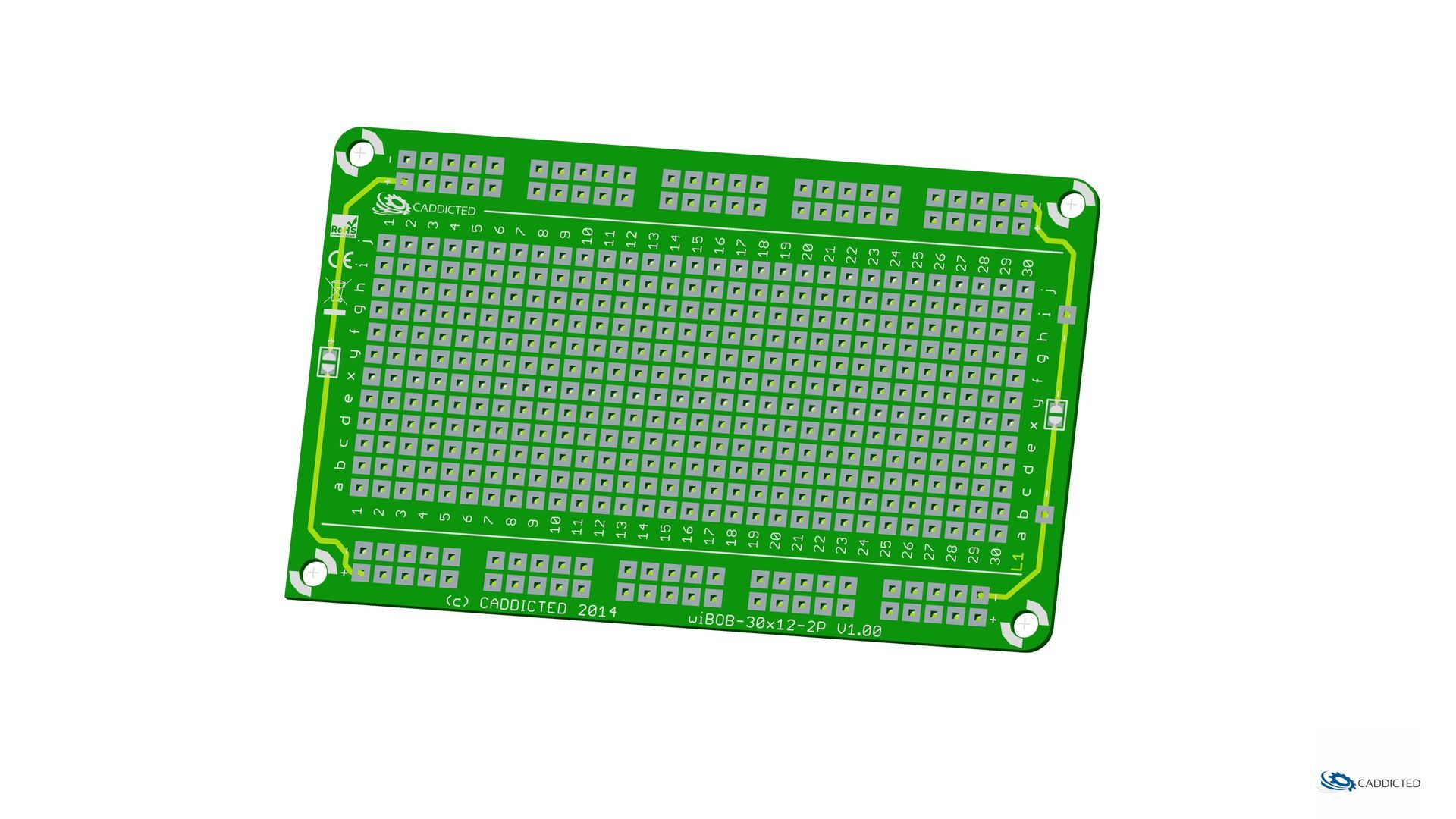

Breakout board as an attachment for a typical breadboard with 30x12 contact fields.
The advantage here is that the BOB PCB is put on BEFORE the components are inserted. If the circuit is correct, the PCB and components can be removed from the breadboard and the components can be soldered like on a perforated board. This gives you stable prototypes, but you can get by without a soldering iron during the experimentation phase!

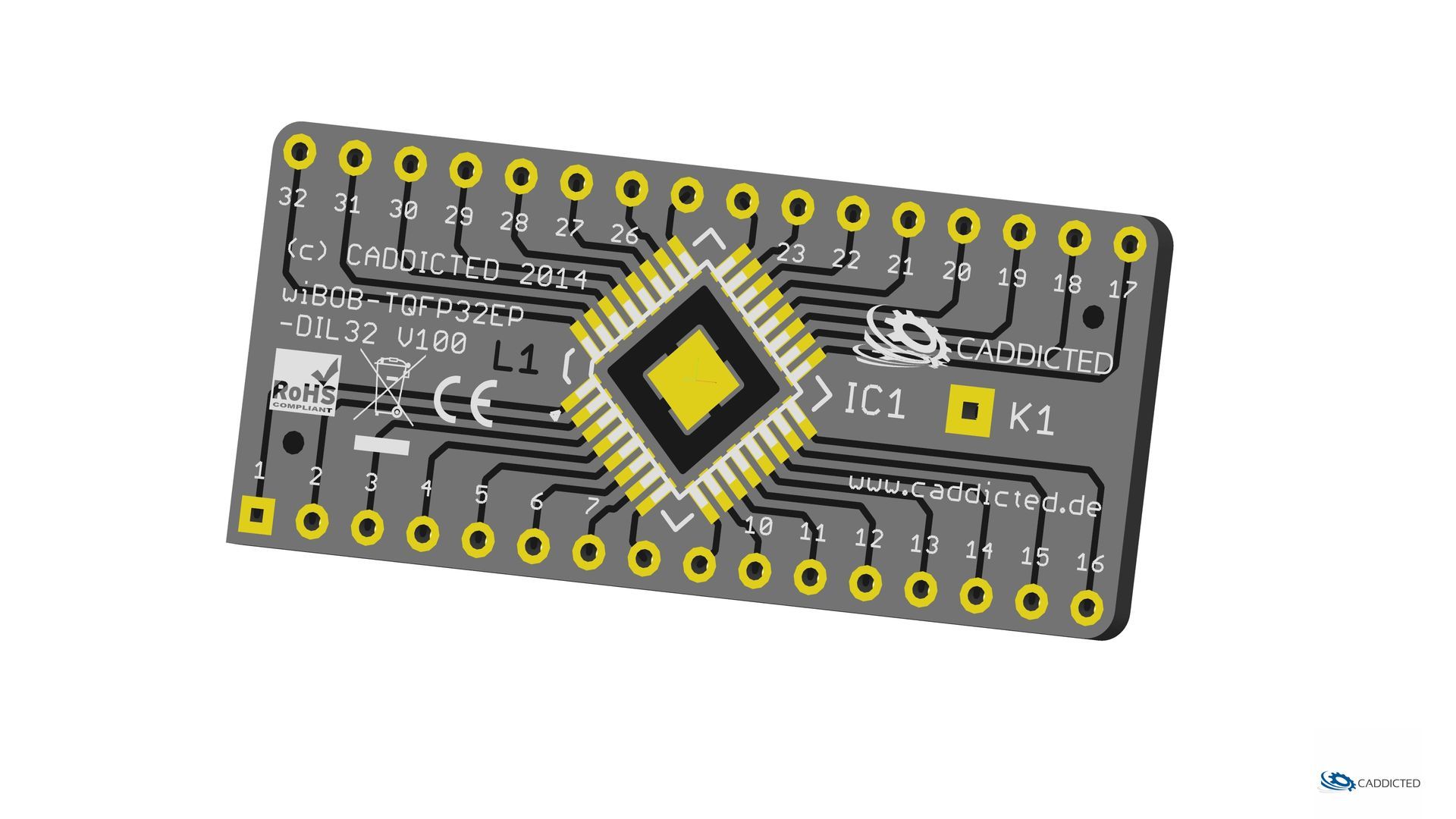

Breakout board adapter from TQFP32 with exposed pad to DIL32 in standard pitch of 2.54 mm or 100 mil.
Very suitable for smaller controllers that are to be used directly in an experimental board without any peripherals. The controllers should be able to run with an internal clock, as the board does not offer an external quartz or RC oscillator.
