CADDICTED wiBOB-TQFP32EP-DIL32

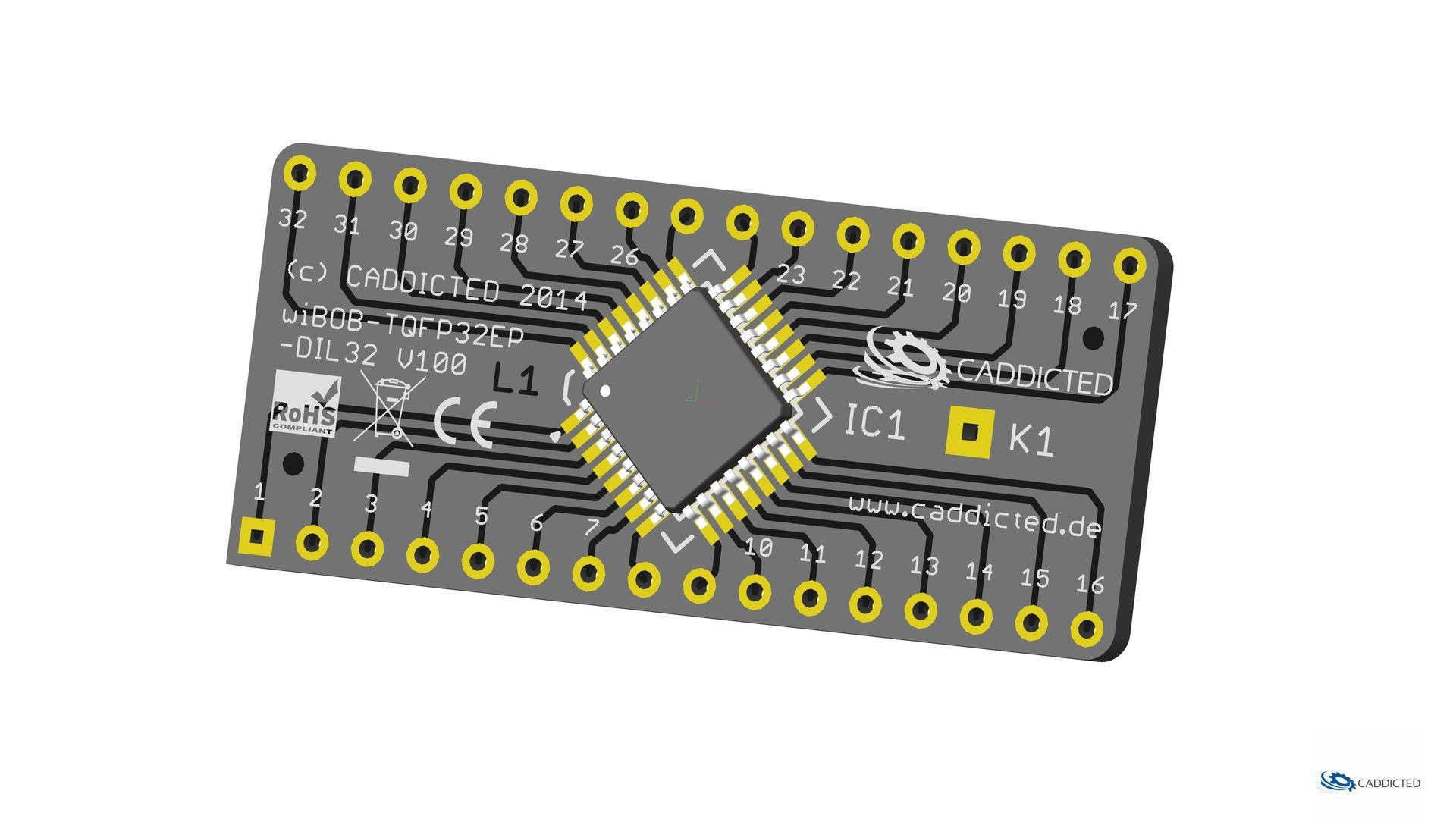

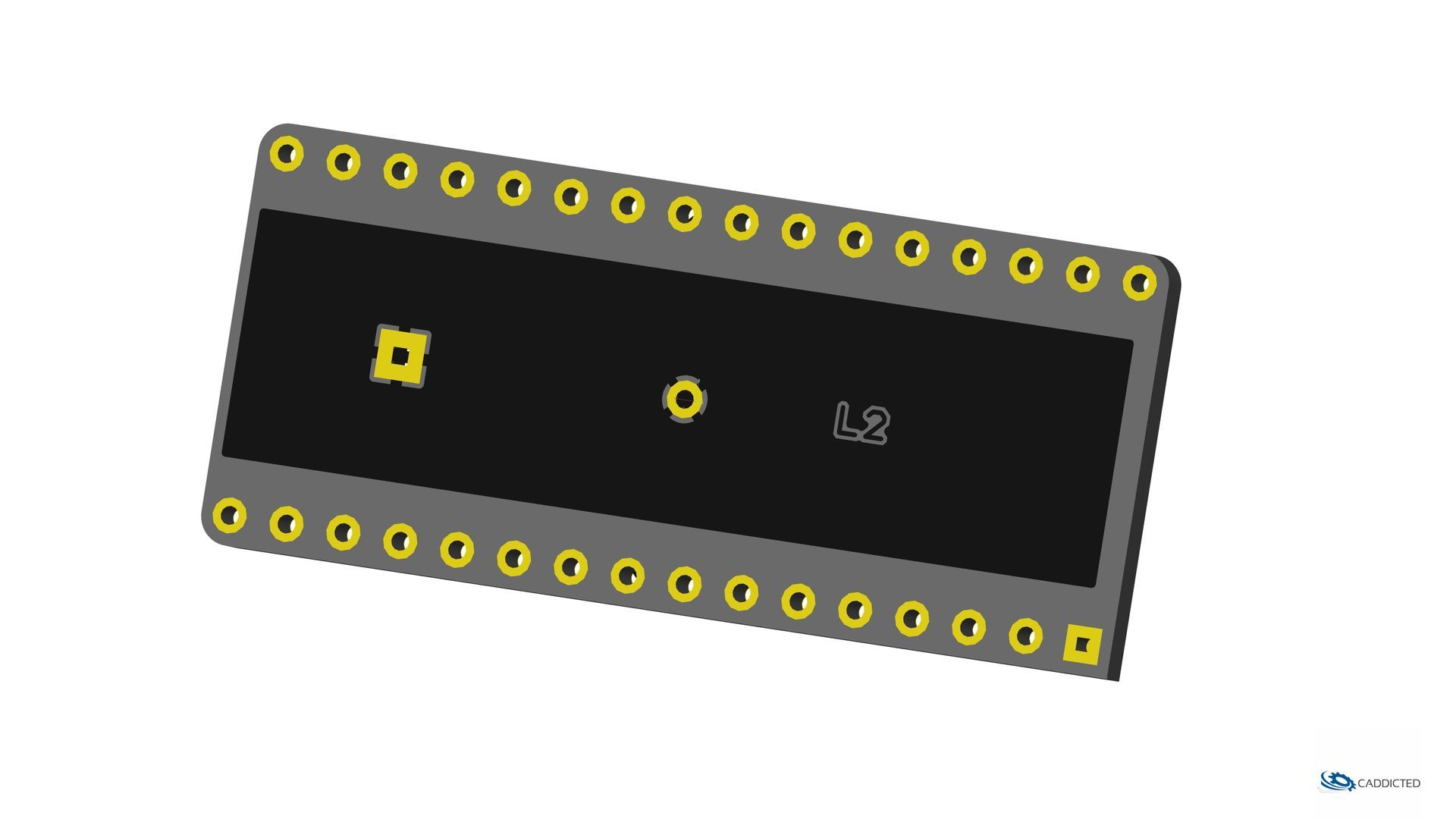

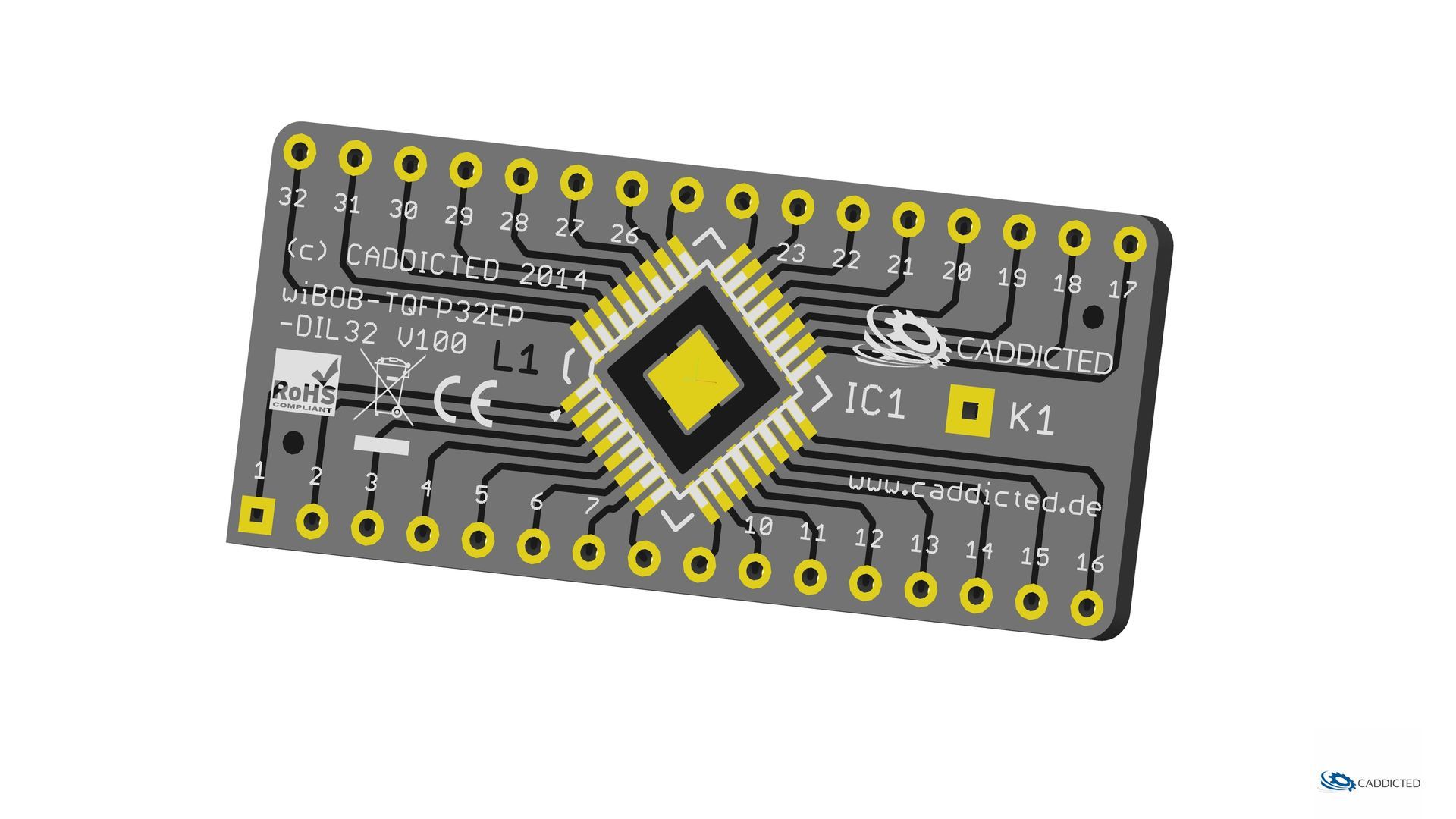

Breakout board adapter from TQFP32 with exposed pad to DIL32 in standard pitch of 2.54 mm.



Breakout board adapter from TQFP32 with exposed pad to DIL32 in standard pitch of 2.54 mm or 100 mil.


IC footprint according to JEDEC MS-026ABA.


Very suitable for smaller controllers that are to be used directly in an experimental board without any peripherals. The controllers should be able to run with an internal clock, as the board does not offer an external quartz or RC oscillator.


The design is for free use WITHOUT guarantee or warranty!

- 1x pad for pin connector K1 to tap the potential on the exposed pad

- IC footprint JEDEC MS-026ABA, IC housing e.g. QFP80P900X900X120-32N-EP

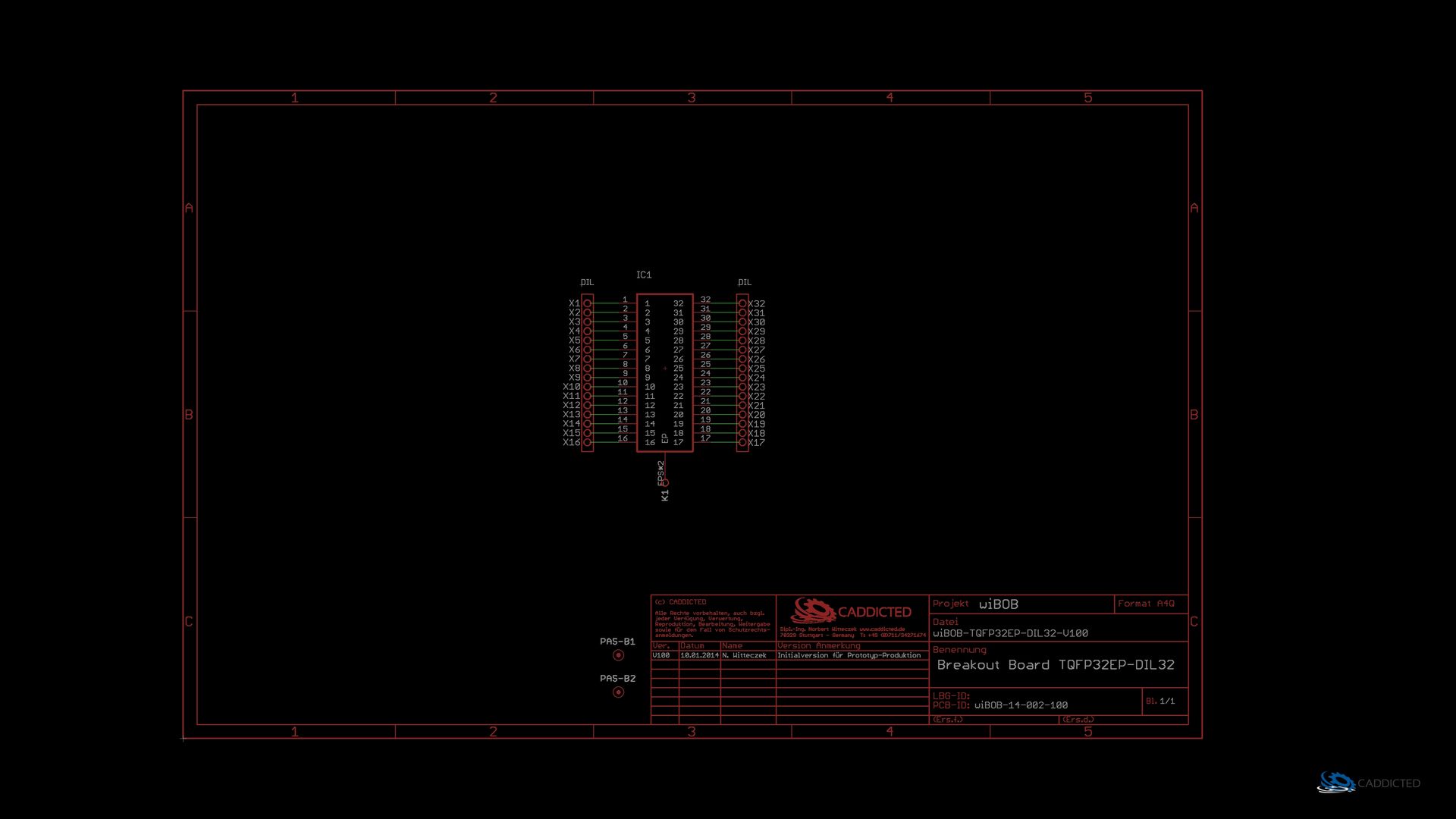

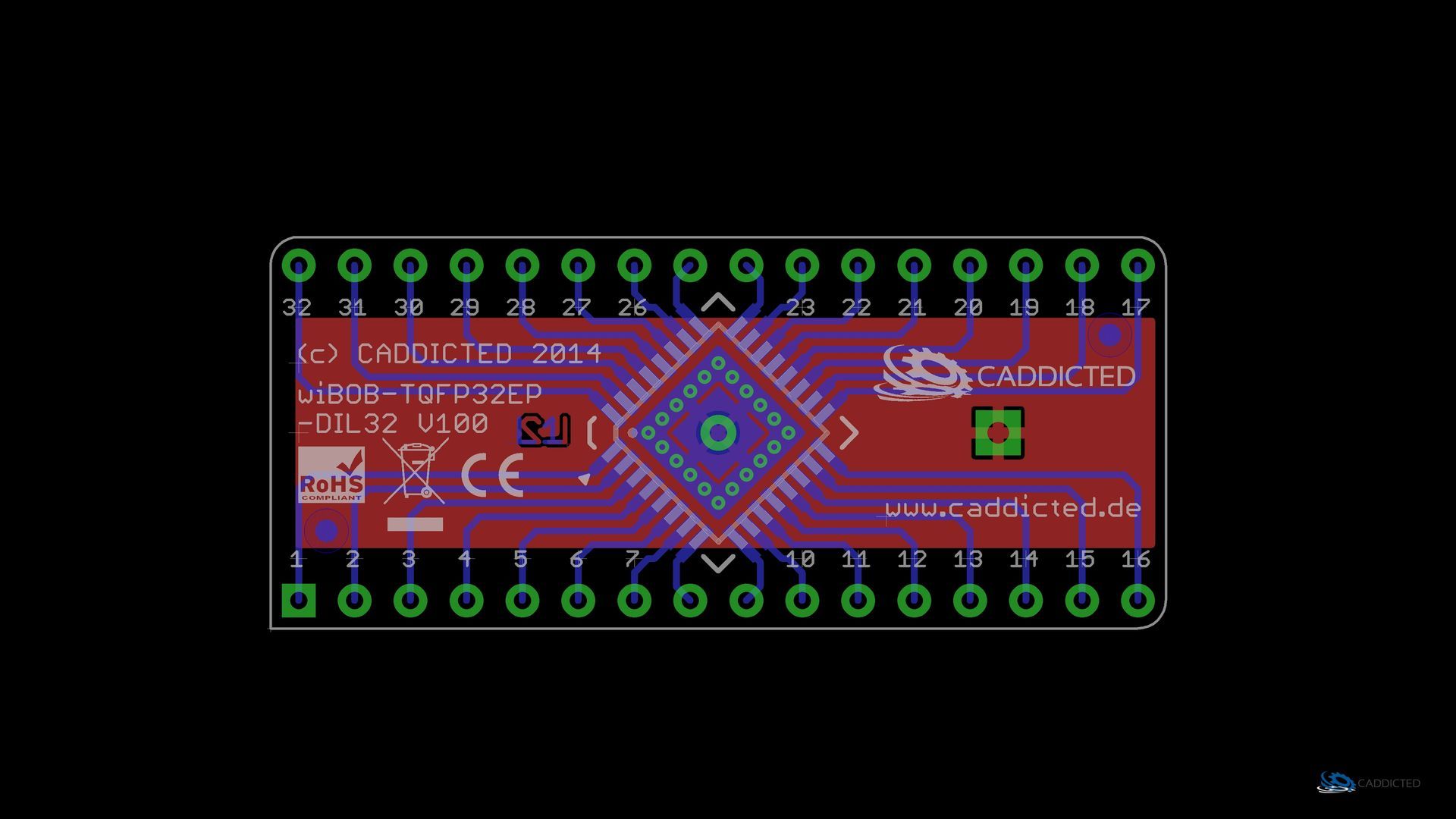

- In the download container: circuit diagram as *.pdf, layout documentation as *.pdf, CAM data, 3D data



- Voltage:        max. 30 V

- Current:        max. 0.8 A (according to IPC-2221)

- Material:       FR4, 1.57 mm



- Dimensions:          40.64 mm x 17.78 mm

- Pad holes:              0.80 mm

- Mounting holes:   none

- Pitch:                      2.54 mm


- Produced as a prototype

- Version V100
