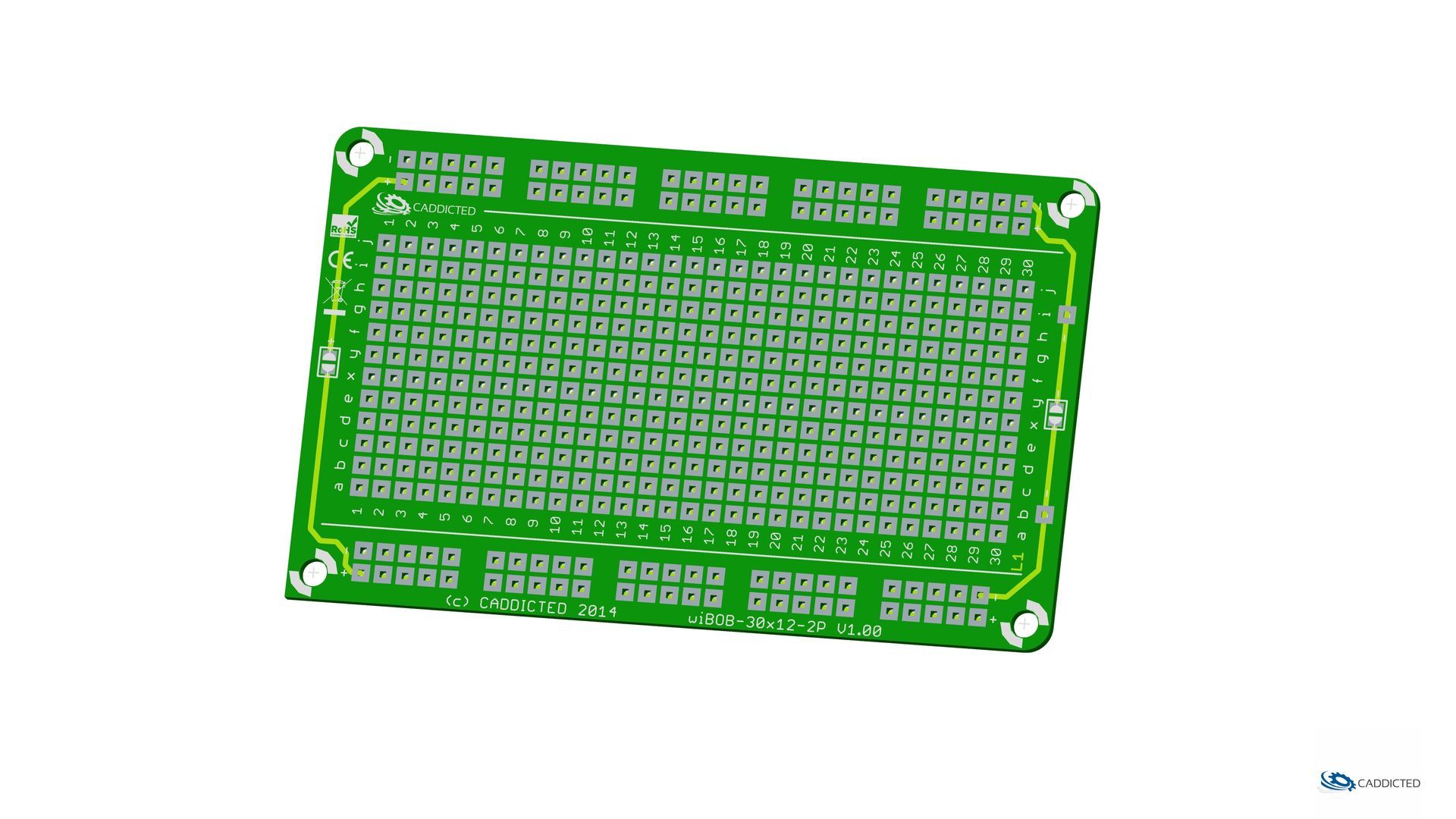

CADDICTED wiBOB-30x12-2P

Breakout board as an attachment for a typical experimental breadboard for laboratory and hobby with 30x12 contact fields.



Breakout board as an attachment for a typical breadboard with 30x12 contact fields.


The advantage here is that the BOB PCB is put on BEFORE the components are inserted. If the circuit is correct, the PCB and components can be removed from the breadboard and the components can be soldered like on a perforated board. This gives you stable prototypes, but you can get by without a soldering iron during the experimentation phase!


The design is for free use WITHOUT guarantee or warranty!

- 2x additional central hole grid rows 2x 30 pads for centrally located components (e.g. blocking capacitors)

- 2x additional pins for measuring taps on SUPPLY-

- 2x solder jumpers for bridging the upper and lower supply rows SUPPLY+ and SUPPLY-

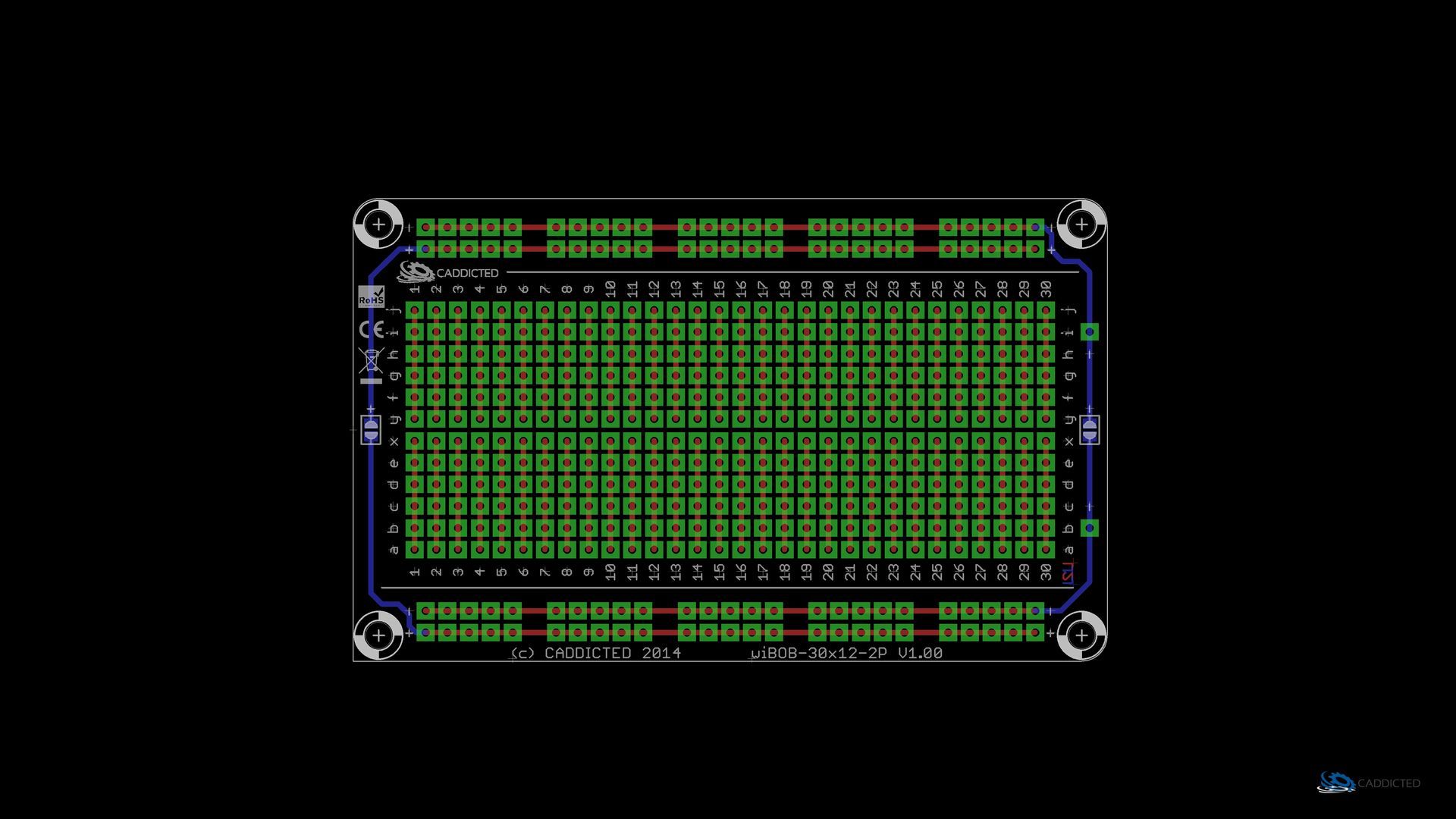

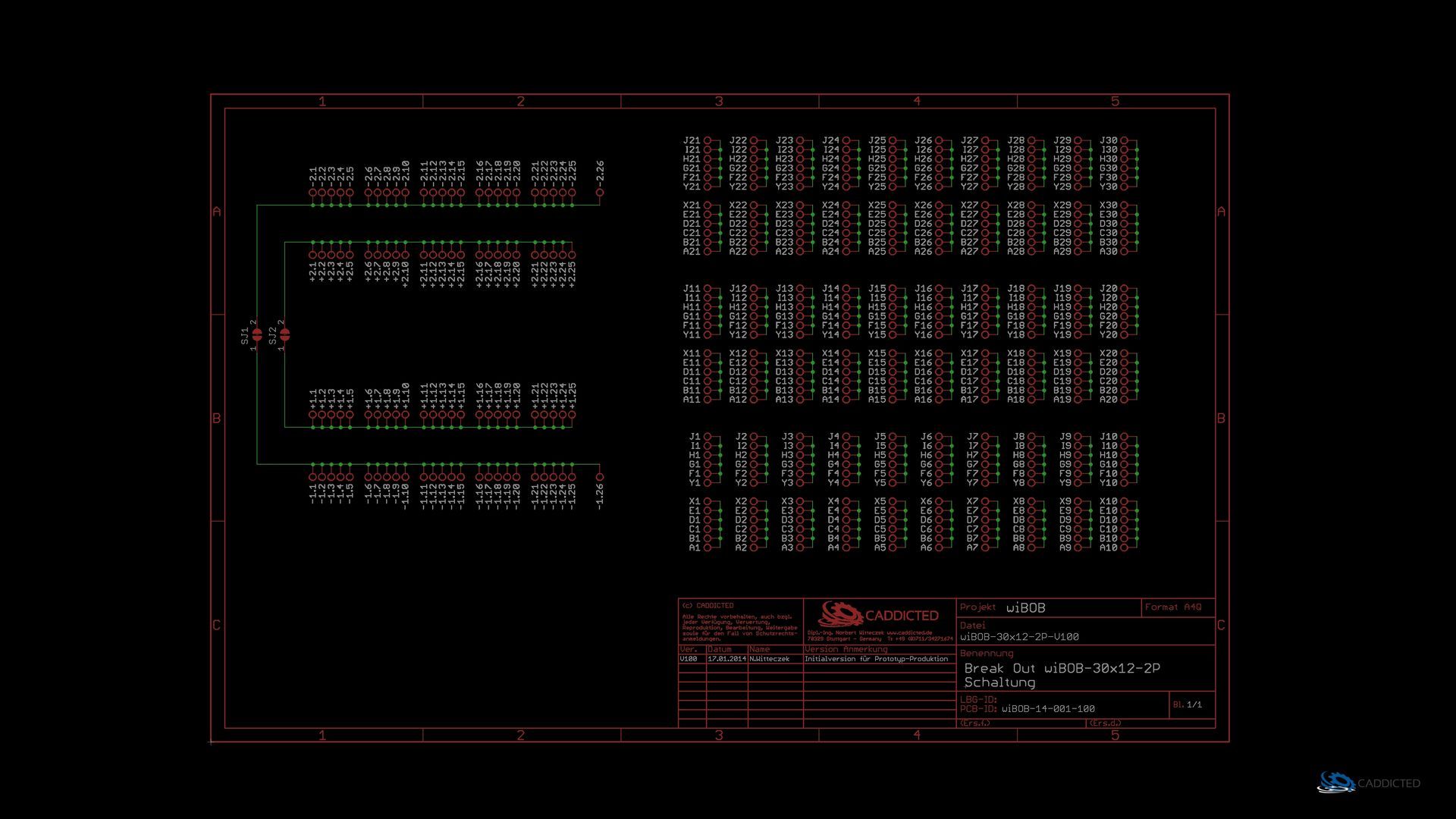

- In the download container: circuit diagram as *.pdf, layout documentation as *.pdf, CAM data, 3D data



- Voltage:       max. 30 V

- Current:       max. 2.5 A (according to IPC-2221)

- Material:      FR4, 1.57 mm




- Dimensions:           88 mm x 54 mm

- Pad holes:               1.016 mm

- Mounting holes:    4x 3.20 mm

- Pitch:                       2.54 mm



- Produced as a prototype

- Version V100
